Electro-hydraulic push rod DS-16HA (Customizable)
 |
 |
 |
 |
 |
 |
| It can be widely used in: Construction machinery, agricultural machinery, industrial equipment, ship driving device, automation equipment, vehicles and auxiliary lifting equipment, devices, elevators, handling equipment and tooling fixtures, automatic circulation equipment, leisure and entertainment facilities and large sports equipment, medical, office, fitness equipment, residential, greenhouse and other room temperature automation and other application scenarios. |

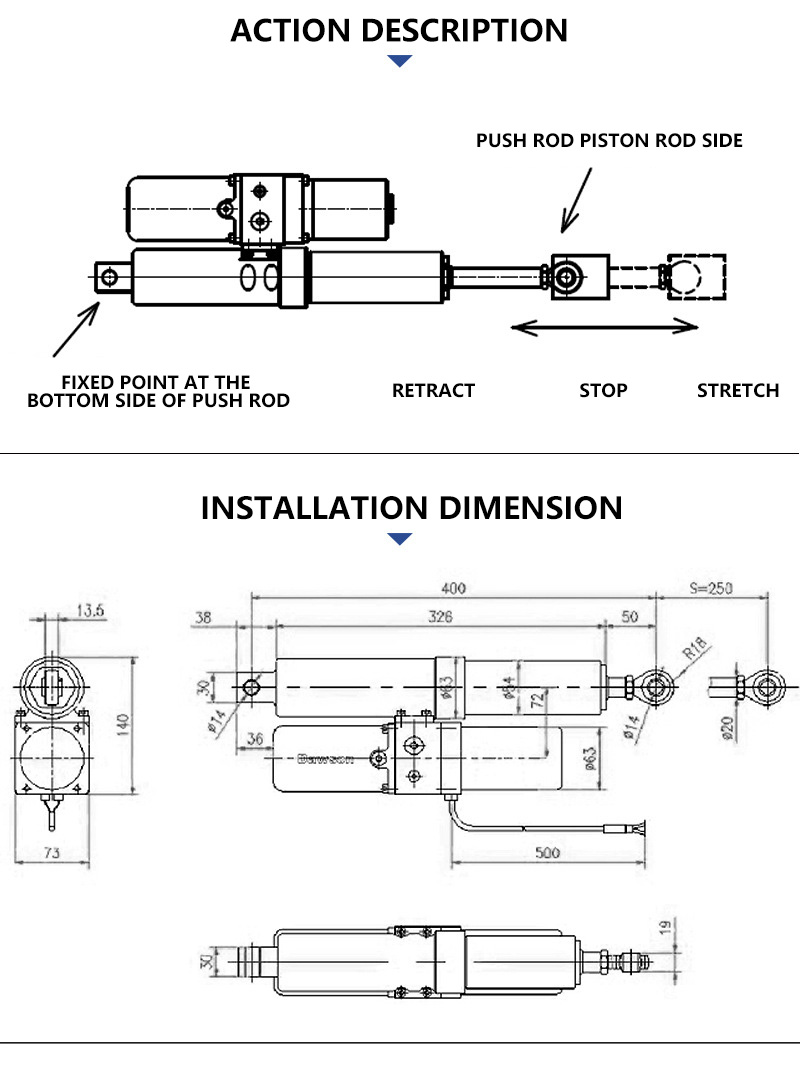

Note: 1 Overflow valve: stop immediately when it reaches the limit position. If it exceeds 2, the overflow valve will cause the oil temperature to rise. Without customer customization, the set pressure of the overflow valve is the rated value (4MPa, 6MPa, BMPa). 2. Operation time: the whole machine is used intermittently and cannot be operated continuously. In 40 seconds, the duty cycle shall not exceed ED25% 6 under normal temperature, and the rest time shall be more than 120 at rated thrust. 3 Overload: when the maximum load or the allowable duty cycle is exceeded, the oil cylinder stops working, and the reducing load or motor can be reused after cooling. 4 Overload protection: when the static load is greater than 1300, the oil cylinder will automatically return due to excessive pressure. 5 Do not start and turn off the power frequently. 6 When not in use for a long time, in order to avoid dust, rust and bruise, the oil cylinder should be shrunk and stored. Emergency manual operation: (careful operation) In case of power failure, disconnection, fault, (the third case cannot be ruled out), operate the manual valve ⑥ to retract the oil cylinder: Use a hexagon wrench to loosen and rotate for 2-3 turns, and the oil cylinder can be retracted by hand or by self-weight and external force.
